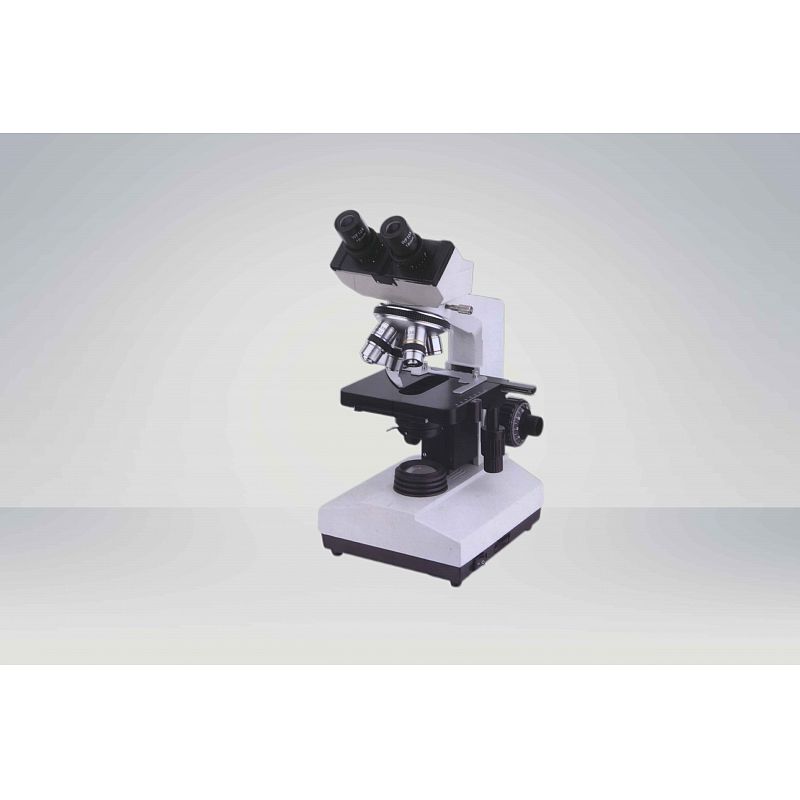

Binocular Head Biological Microscope
| Item No.: | XSZ-107BN |
| Min. Order: | 1 Piece |
|---|
1. Achromatic objectives: 4X,10X,40X(S),100X(S,OIL)
2. Wide field eyepiece: WF10X, (WF16X for choice)
3. Viewing head: Binocular head, Inclined at 45°,Rotatable 360°, Interpupillary distance: 55-75mm
4. Nosepiece: Quadruple
5. Mechanical Stage: Double layer mechanical stage, Size 140x140mm, moving range 75x50mm
6. Focusing: Coaxial coarse and fine adjustment, focusing range 30mm,focusing interval 0.002mm
7. Condenser: Abbe NA=1.25 with iris diaphragm filter
8. Illumination: 6V/20W halogen lamp
9. Net weight:6.5Kg
10. Measurement (including binocular head): 185mm(L) x 270mm(W) x 400mm(H)
