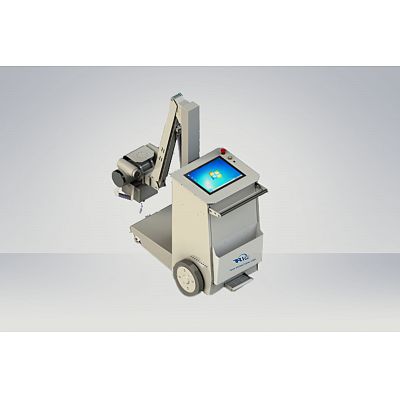

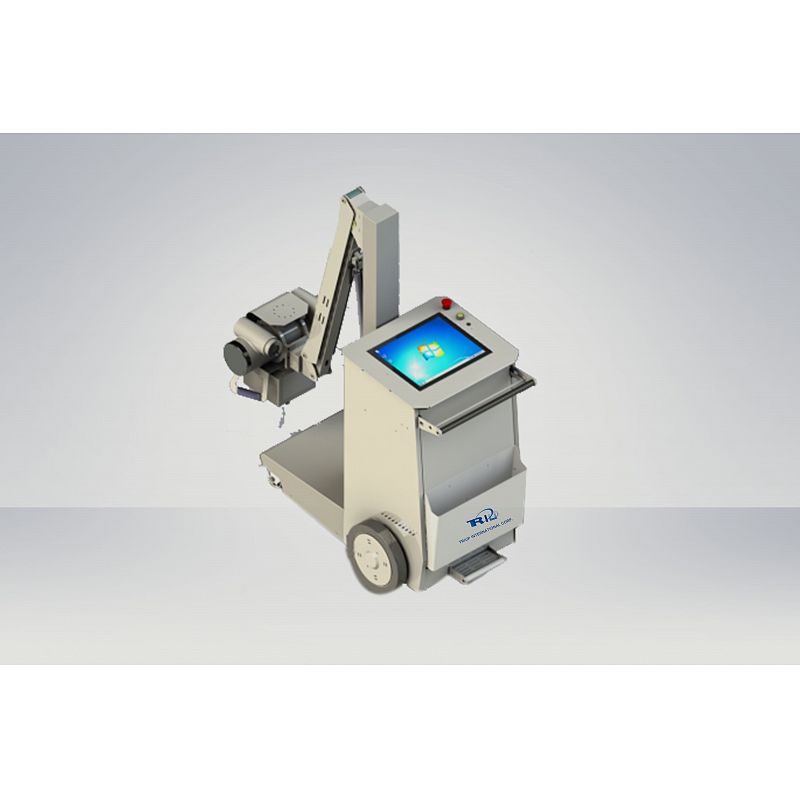

Digital Type HF Mobile X-Ray Machine

Item No.: HM-200MD
Min. Order: 1 Piece

1. With 1717X wired DR (17"x17"), With 17" touch screen all-in-one computer(With Wired/Wireless DR)

2. Max. 20kW 125kV 320mA

3. kV Range: 40~125kV

4. mA Range: 10~320mA

5. mAs Range: 0.1-320mAs

6. Exposure time: 0.02S~10S

7. Focus: 1.0 mm / 2.0 mm

8. Detector technology: Amorphous Silicon

9. Scintillator: CSI

10. Active area: 17"x17"

11. Pixel pitch: 139um

12. Number of Pixel: 3072x3072

13. Limiting resolution: 3.6lp/mm

14.Power supply: AC220V±10%, 50/60Hz
