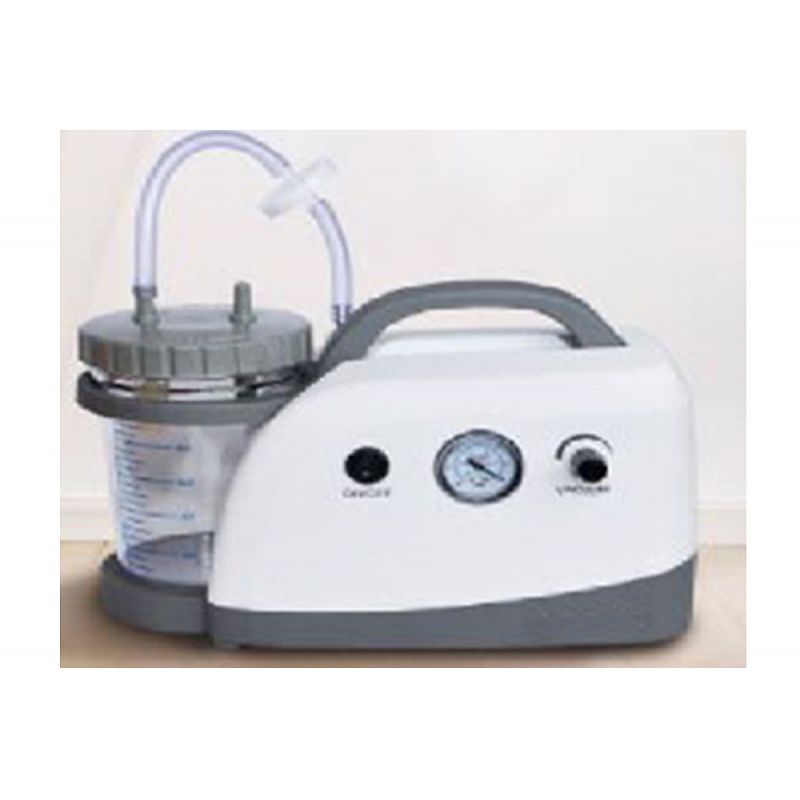

Portable Electrical Sputum Suction Device TR-23AI

◆  General Introduction

Portable electrical sputum suction device can be used for suctioning sputum and other thick secretions in hospitals,

and may also be used for fist aid in the household.

◆  Features

All-plastic ABS enclosure that is formed in one piece is adopted.

Macromolecule suction bottle is adopted, allowing for cleaning and disinfection.

This device has no oil pump and is maintenance-free.

This device has a small volume and low noise.

This device is equipped with an overflow protection unit to prevent liquid from getting into pump body.

◆  Principle Technical Data

Mains                                                    AC 220V±10% 60Hz

Pump structure                                      oil-free  pump

Air pumping efficiency                             ≥15L/min

Limit of negative pressure                          ≥0.08MPa

Adjustment range of negative pressure             0.013MPa～0.08MPa

Input power                                             150VA

Liquid vessel                                             1000ml

Noise level                                             ≤50dB
