Feature:
▪ Radiant Warmer, Warmer system, infant access (portable).

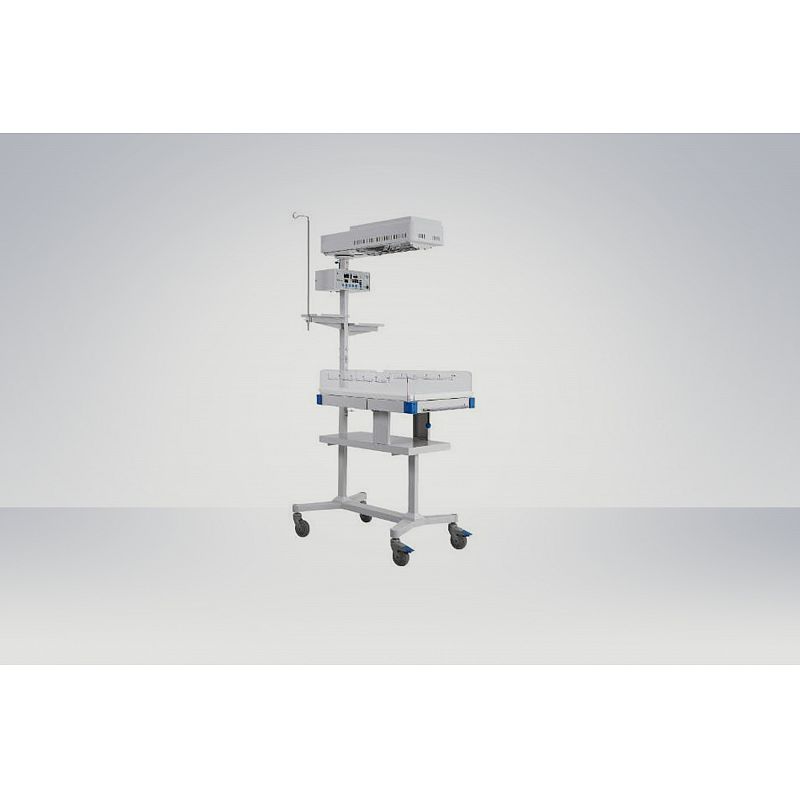

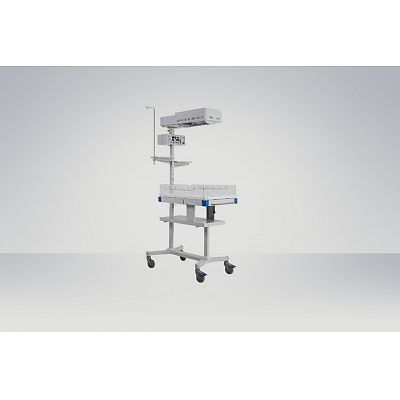

▪ Mobile freestanding overhead radiant warmer. (Transport, Installation, servicing/maintanence, user level orientation)
▪ Microcontroller based, open type radiant warmer with manual and servo options.
▪ It has facility to display skin set, skin observed temperature in 0℃ and heat power separately.
▪ Have user friendly touch control panel LED digital display 8 inch
▪ Ceramic or quartz infrared or calrod heater
▪ Audiovisual alarm facility for overheating beyond set temperature range, probe failure, power failure, system failure and heater failure
▪ Machine should sense the skin probe failure and cut off the heater.
▪ Warmer head should rotate and swivel in different direction.
▪ The height of the warmer can adjustable.
▪ X-Ray tray facility
▪ Storage drawer facility
▪ Control Panel should be liquid proof and allow easy and hygienic disinfection
Specification:
▪ Observation Light: Variable with intensity range of 0 to 1000 lux(max)or wider.
▪ APGAR Timer 10 second beep at 1 minute, 5 minutes, 10 minutes and 20 minutes.
▪ Skin Temperature Display Range: 18.0°to 45.0°
▪ Resolution: 0.1°C
▪ Accuracy: 0.3℃
▪ Skin Temperature Setting Range: 33.0° to 38.0°(in 0.1℃ increments)
▪ Heater Output Indication Numeric display: 0% to 100%, resolution 5%
▪ Dimensions Main body : 850(W)x1170 (D)x(1800-2000)(H) mm (approx.)
▪ Mattress : 470(W)x670(D)x23-30(H)mm approx
▪ Bed Load Capacity: Infant weight up to 10kg
▪ The size of the drop down sides such that it is 5"(°1”)above the mattress surface at least 5 mm thick, clear and transparent.
▪ Bed about 80-100 cm from the floor and 80-90 cm from the heat source.
▪ The baby bed crevice free for ease of cleaning, infection control and mattress used should be of biocompatible material
▪ Heater Element: 500-700 watts.
▪ Bed tilt mechanism: ±5° to 12°
▪ Probe wire is pliable, thin and soft. The attachment site of the probe with the wire should also be pliable and non-stiff.
▪ It has castor wheels (2 of the castors should have breaks/lock)
▪ Power Supply: Power input 220-240 VAC, 50 Hz fitted with standard plug.
